Description
| Brand | Mantis |
| Engine Make | Honda |
| Engine Model | GX25 |
| Engine Type |
Air-cooled 4-stroke OHC
|
| Bore x Stroke | 35mm x 26mm |
| Engine Displacement | 25cc |
| Net Rated Power Output |
0.72kW @ 7,000rpm
|
| Horsepower | 1.0hp |
| Torque |
0.74lb-ft (1.0Nm) @ 5,000 rpm
|
| Compression Ratio | 8.0:1 |
| Fuel Tank Capacity | 0.58L |
| Engine Lubrication Type |
Crankcase pressure–driven
|
| Carburettor |
Diaphragm-type (overflow return)
|
| Start Method | Recoil |
| Ignition System |
Transistorized magneto
|
| Speeds |
Variable speed throttle
|

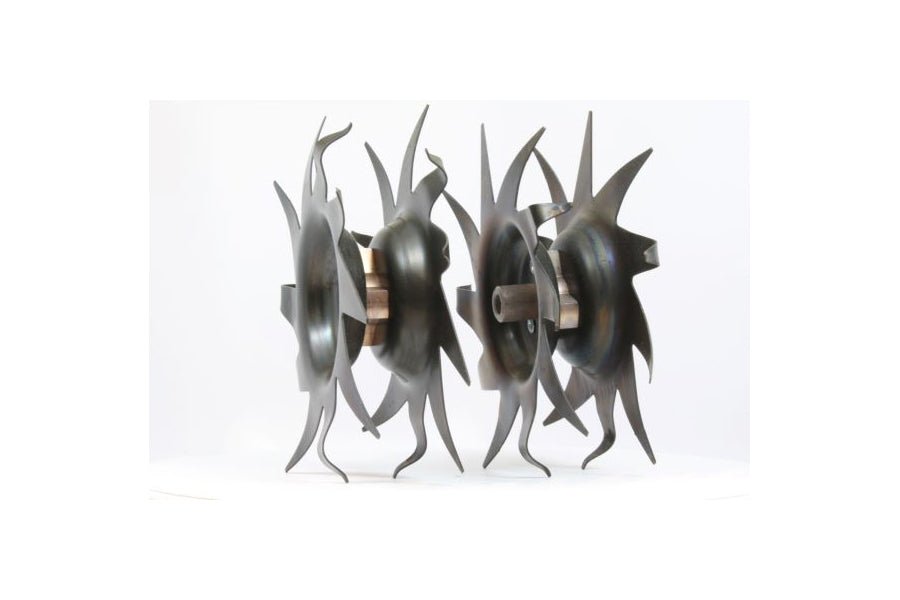

| Tilling Width | 23cm / 9″ |
| Maximum Tine Speed | 200rpm |
| Weight | 11.0kg |
| Warranty |
2 years for domestic use
|
